Neck profiles and shapes

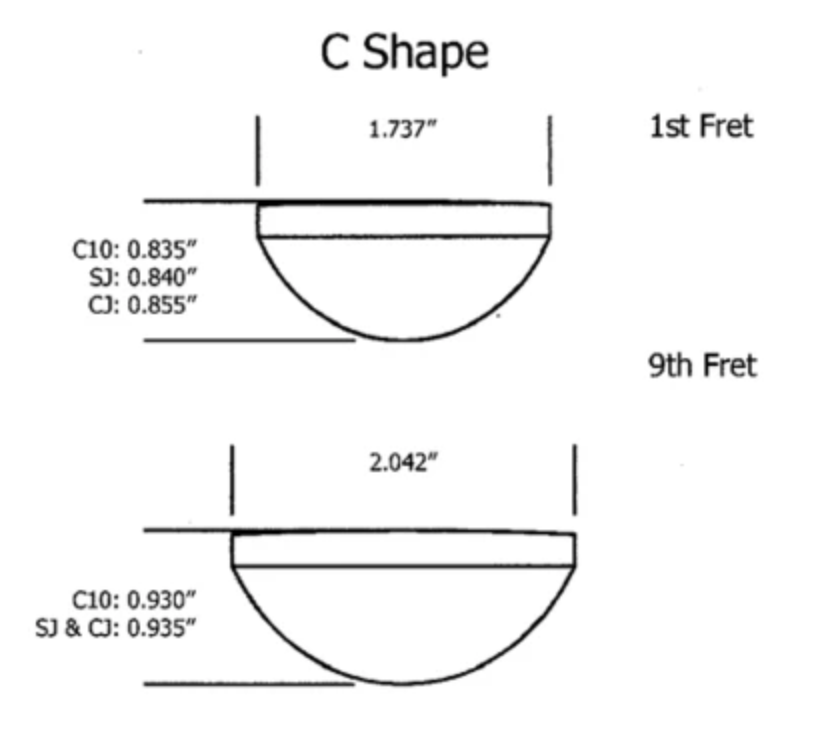

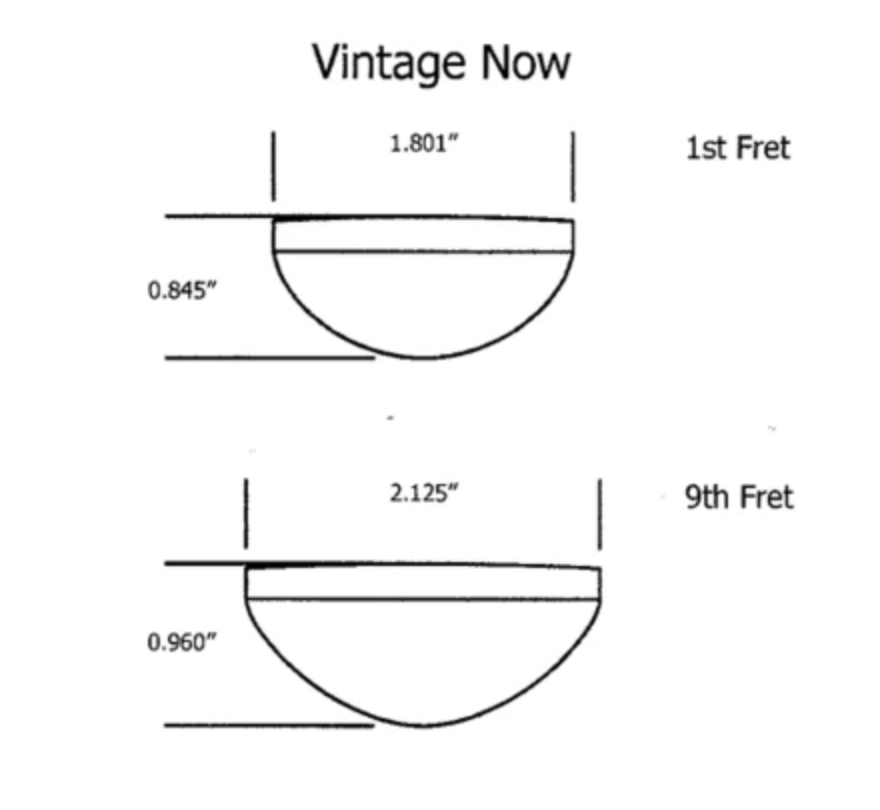

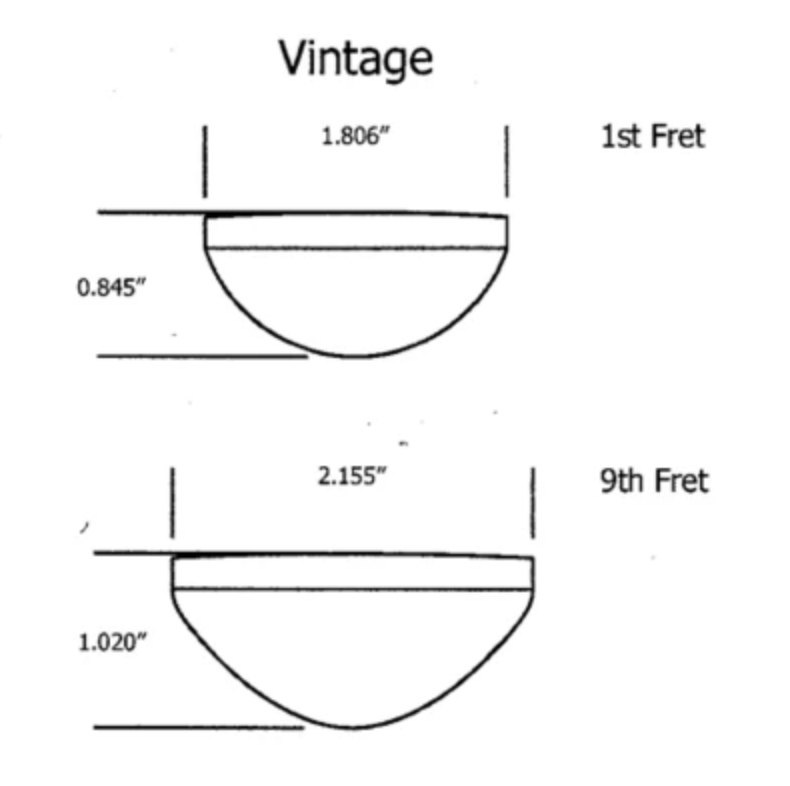

Note that on modern Martin necks, the fretboard thickness is between 0.225″ and 0.250″, most commonly near the low end of that range.  Fretboard thickness is not included in the Martin chart below.

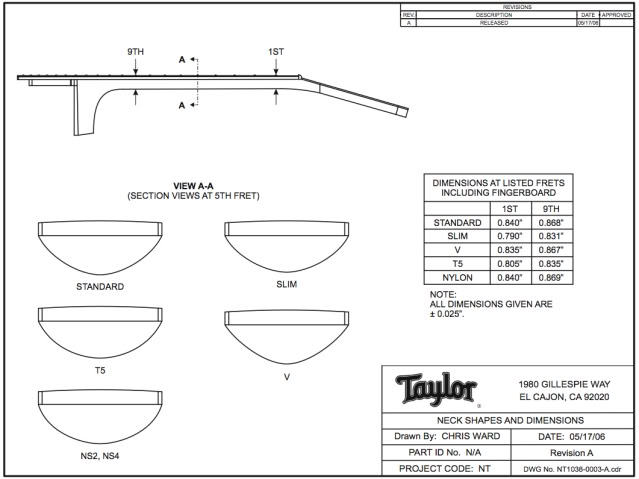

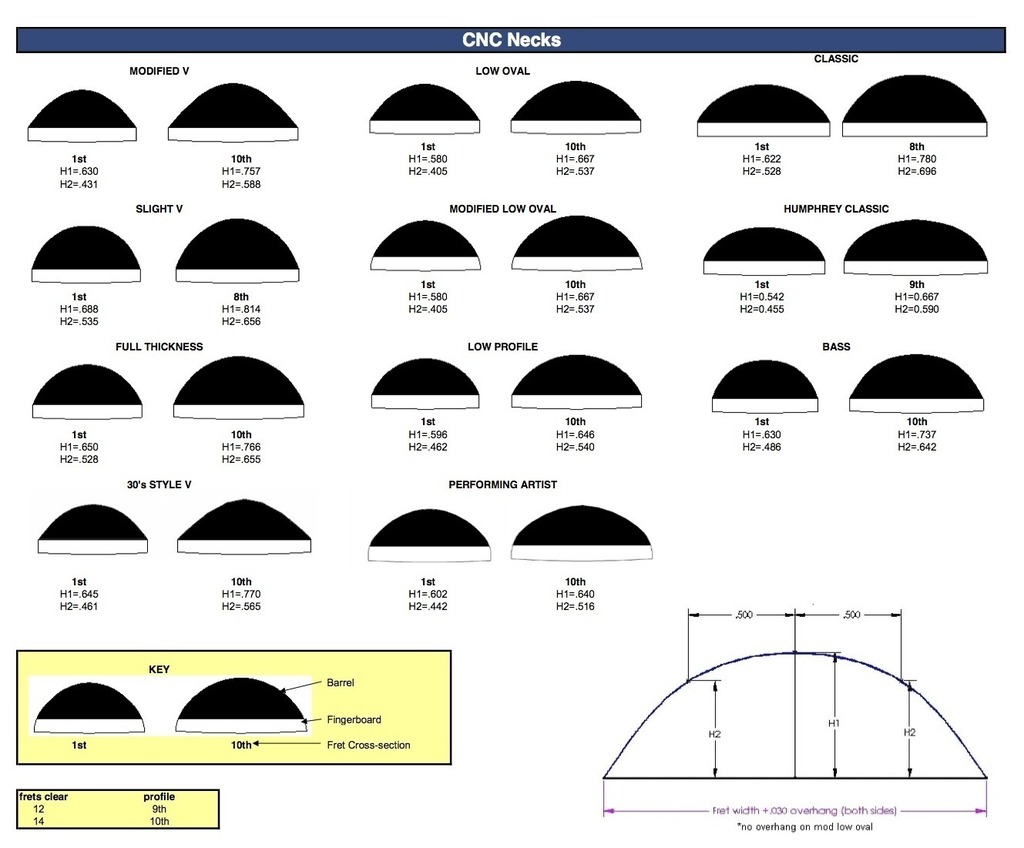

NeckShapesNeckProfiles-1

Collings neck shapes
